Compact, Precision Powder Feeders

Powder Motion Labs is dedicated to the design and manufacture of precision powder feeders. Our patented core technology leverages electrostatic forces to manipulate powder particles in order to provide smooth and consistent powder flow. Our powder feeders feature near-instant turn-on and turn-off times, and excellent powder feed rate repeatability, all in a device a fraction of the size of conventional powder feeders.

We've designed our powder feeders from the ground up to meet the demands of a variety of processes including:

  • Laser Metal Deposition
  • Thermal Spray
  • Laser Cladding
  • Welding
  • Powdered chemical handling, dosing, and processing

The X2 Powder Feed System

The X2 system consists of two components: the controller and the powder feeder cores. The controller is designed to mount conveniently in a standard 19" rack or on a tabletop, while the powder feeder cores can be positioned near or directly at the customer's process.

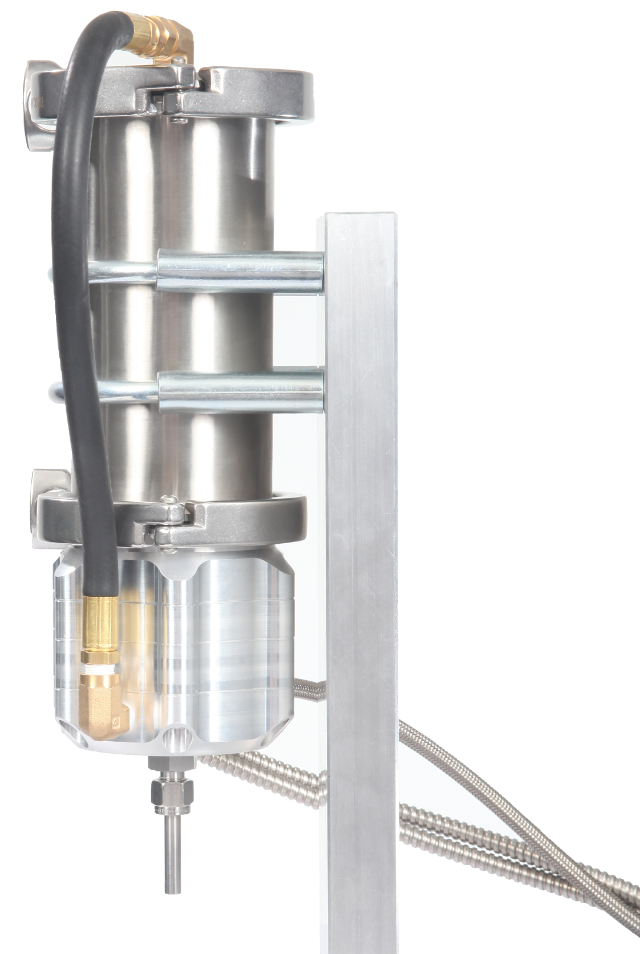

At a fraction of the size of typical powder feeders, the X2 System was designed with ease of integration in mind. Cores are roughly the size of a softball, and hoppers are available in a variety of sizes, making seamless integration into existing systems possible.

The standard controller is capable of controlling two cores, and occupies only 4U of rack space. The controller features an easy-to-use touch-screen interface, as well as an external serial control interface. In addition, the X2 cores have built-in optical powder flow sensing, which can be viewed as a graph on the controller display.


Specifications

Typical feed rate 0.05 g/min to 50 g/min
Feed rate repeatability <1%
Powder flow turn-on/turn-off delay <2 seconds
Gas flow (optional) 0 to 25 LPM
Hopper capacity 0.7L, 1.1L, 2.2L standard, larger available upon request
Armored cable length 10 ft. standard, custom lengths available
Manual control 4" industrial touch-screen
External control Modbus RTU over RS232, RS485, or RS422 bus
Power consumption Single-Phase 120VAC, 2 Amps
Controller dimensions 19" width x 14" depth x 7" height

Contact

We'd love to find out more about your process and powder metering needs. For more information, customization, or pricing information, please contact us:
